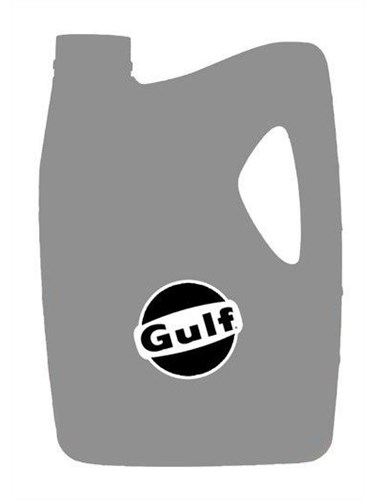

Gulf Harmony AW 22

High performance anti-wear hydraulic oil

Gulf Harmony AW series are high performance anti-wear hydraulic oils developed for high pressure hydraulic systems operating under moderate to severe conditions in mobile and industrial service. These oils are formulated with high quality base oils and carefully selected performance additives to provide excellent protection against oxidation degradation, rust & corrosion and wear. They also possess superior foam control, water separation and rapid air release properties. The lower viscosity grades (ISO 10 through 100) are formulated with field proven thermally stable zinc based anti-wear additive system and the higher viscosity grades (ISO 150 through 460) are based on ashless anti-wear additive system They exceed the performance requirements of global industry standards viz. DIN 51524 Part 2-HLP, AFNOR NFE 48-603 (HM) & ISO 11158 HM and majority of the international OEMs viz. Denison, FIVES CINCINNATI (Former MAG IAS, LLC) & Eaton (Vickers)

Features & Benefits

  • Excellent thermo-oxidative stability controls the formation of sludge & varnish and improves oil life
  • Exceptional anti-wear property results in longer pump and component life and reduces costs
  • Superior demulsibility helps in faster separation of water from oil and resists formation of emulsions
  • Special rust & corrosion inhibitors protect multi-metallurgy components even in presence of moisture
  • Rapid air release property minimises chances of pump cavitation leading to trouble free operations
  • Compatible with multi-metals and sealing materials commonly used in hydraulic systems

Applications

ISO VG 10 through VG 100

  • Hydraulic systems operating under moderate to severe conditions in mobile and industrial service
  • Older hydraulic systems where leakage is a problem and a cost-effective hydraulic oil providing all-round protection is required
  • Mobile hydraulic fluid power transmission systems and general machine lubrication

ISO VG 150 through VG 460

  • Recommended for a wide variety of following industrial applications requiring anti-wear type of oils:
    • Circulating oil systems
    • Plain and rolling element bearings
    • Gear sets
    • General Machine lubrication

Specifications, Approvals & Typical Properties

ISO Viscosity grades

10

15

22

32

46

68

100

Specifications

DIN 51524 Part 2-HLP

X

X

X

X

X

X

X

AFNOR NFE 48-603 (HM), ISO 11158 HM

X

X

X







X

Eaton (Vickers) M-2950-S, M-2952-S, I-286-S







X

X

X



Has the following Approvals

FIVES CINCINNATI (Former MAG IAS, LLC)







P-68

P-70

P-69



Denison HF-0, HF-1, HF-2







X

X

X



Typical Properties

Test Parameters

ASTM Method

Typical Values

Viscosity @ 40 C, cSt

D 445

10.1

15.1

22.2

31.2

45.9

68.3

98.3

Viscosity Index

D 2270

97

97

98

100

100

99

97

Flash Point, C

D 92

136

164

186

202

210

218

230

Pour Point, C

D 97

-30

-24

-24

-24

-24

-24

-12

Density @ 15C, Kg/l

D 1298

0.847

0.858

0.865

0.87

0.874

0.881

0.886

Rust Test

D 665A/B

Pass

Pass

Pass

Pass

Pass

Pass

Pass

Emulsion Test

30 minutes max

@ 54 oC

D 1401

Pass

Pass

Pass

Pass

Pass

Pass

-

@ 82 oC

-

-

-

-

-

-

Pass

Foam Test, foam after 10 minutes of settling for all sequences

D 892

Nil

Nil

Nil

Nil

Nil

Nil

Nil

Turbine Oil Stability Test, hrs

D 943

2000+

2500+

2000+

FZG, fail load stage, minimum

DIN 51354 Part II

-

-

-

11

11

11

11



ISO Viscosity grades

150

220

320

460

Specifications

DIN 51524 Part 2-HLP

X







AFNOR NFE 48-603 (HM)

X







ISO 11158 HM

X







Typical Properties

Test Parameters

ASTM Method

Typical Values

Viscosity @ 40 C, cSt

D 445

148.9

221

321.1

467

Viscosity Index

D 2270

96

96

95

95

Flash Point, C

D 92

246

256

266

280

Pour Point, C

D 97

-9

-6

-6

-3

Density @ 15C, Kg/l

D 1298

0.89

0.894

0.898

0.902

Rust Test

D 665A/B

Pass

Pass

Pass

Pass

Emulsion Test

30 minutes max

@ 82 oC

D 1401

Pass

Pass

Pass

Pass

Foam Test, foam after 10 minutes of settling for all sequences

D 892

Nil

Nil

Nil

Nil

Turbine Oil Stability Test, hrs

D 943

1500+

1000+

FZG, fail load stage, minimum

DIN 51354 Part II

11

11

11

11
