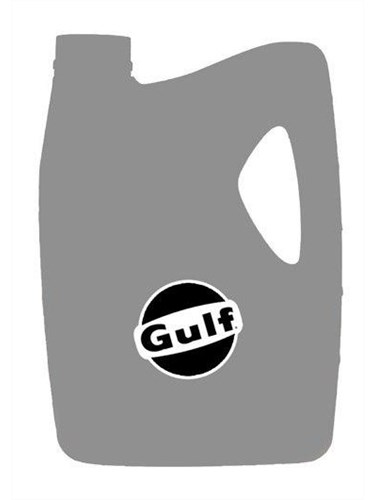

Gulf Harmony HVLP 100

Premium quality high viscosity index hydraulic oil for extreme temperature ranges

Gulf Harmony HVLP series are premium quality anti-wear hydraulic oils specially developed for applications subjected to wide range of temperature or where small viscosity change with fluctuating temperature is required. They are formulated with high quality paraffinic base oils, a highly shear stable polymer and an advanced additive system to meet the stringent requirements of modern hydraulic systems. These oils provide excellent protection against oxidation degradation, rust & corrosion and wear. They also possess superior foam control, water separation and rapid air release properties. These oils exceed the performance requirements of global industry standards viz. DIN 51524 Part 3 HVLP & ISO 11158 HV.

Features & Benefits

  • Exceptional anti-wear property results in longer component life reducing costs
  • Extremely high viscosity index assures equipment protection at cold start-up temperatures and at high operating temperatures
  • Excellent shear stability minimises viscosity loss over time and exhibits “stay-in-grade” performance under high shear conditions
  • Excellent thermo-oxidative stability controls the formation of sludge & varnish and improves oil life
  • Superior demulsibility helps in faster separation of water from oil and resists formation of emulsions
  • Special rust & corrosion inhibitors protect multi-metallurgy components even in presence of moisture
  • Rapid air release property minimises chances of pump cavitation leading to trouble free operations
  • Compatible with multi-metals & most sealing materials commonly used in hydraulic systems

Applications

  • Hydraulic and power transmission systems subjected to a wide range of ambient & operating temperatures
  • Critical high accuracy industrial hydraulic systems
  • Hydraulic systems of excavators, cranes and hydrostatic drives subjected to most severe outdoor operating conditions

Specifications, Approvals & Typical Properties

ISO Viscosity grades 32 46 68 100
Meet the following Specifications
DIN 51524 Part 3 HVLP, ISO 11158 HV x x x x
Typical Properties
Test Parameters ASTM Method Test Values
Viscosity @ 40 C, cSt D 445 32.1 46.9 69.9 99.4
Viscosity Index D 2270 151 152 152 152
Flash Point, C D 92 218 218 226 238
Pour Point, C D 97 -39 -36 -36 -27
Density @ 15C, Kg/l D 1298 0.868 0.874 0.881 0.886
Rust Test D 665A/B Pass Pass Pass Pass
Emulsion Test 30 minutes max @ 54 oC D 1401 Pass Pass Pass -
@ 82 oC   - - Pass
Foam Stability in all three sequences, ml D 892 Nil Nil Nil Nil
Turbine Oil Stability Test, hrs D 943 2500+ 3000+
FZG, fail load stage, minimum DIN 51354 Part II 11 11 11 11
