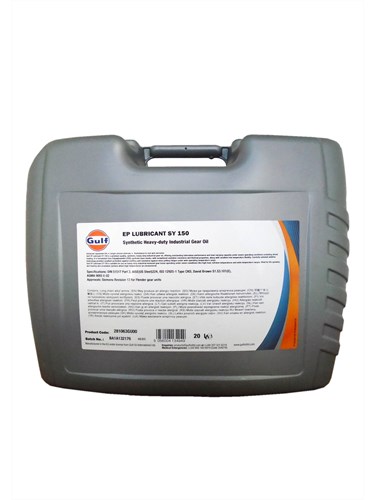

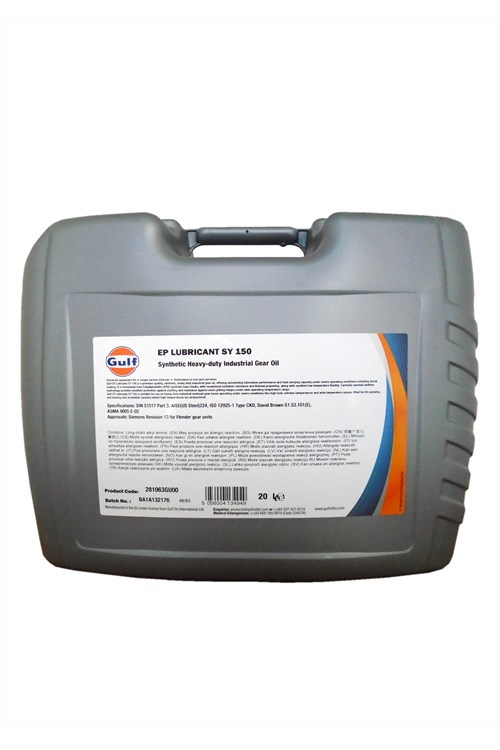

Gulf EP Lubricant SY 150

Synthetic heavy-duty industrial gear oil

Gulf EP Lubricant SY series are premium quality synthetic heavy duty industrial gear oils offering outstanding lubrication performance and load carrying capacity under severe operating conditions including shock loading. These are formulated from Polyalphaolefin (PAO) synthetic base stocks having exceptional oxidation resistance and thermal properties and excellent low temperature fluidity. The combination of naturally high viscosity index base stocks coupled with carefully selected additive technology provides excellent protection against scuffing and resistance against micro pitting fatigue under wide operating temperature range.

Features & Benefits

Outstanding load carrying capability and micro-pitting performance protects gears against scuffing and wear leading to enhanced equipment life and reduced maintenance costs
High viscosity index base stocks provide excellent low temperature fluidity and effective lubrication over a wide temperature range
Superior thermo-oxidative stability provides enhanced system cleanliness and enables longer service intervals
Low traction and enhanced lubricity helps provide extra energy efficiency
Excellent resistance to rust and corrosion protection and good demulsibility ensures trouble free operation at high temperatures and applications encountering water contamination
Good seal and paint compatibility with a wide variety of seals and paints

Applications

Heavy-duty industrial enclosed gear boxes operating under severe conditions like high load, extreme temperatures and wide temperature ranges
Filled for life systems
Bearing and circulation systems where high temperatures are encountered

Specifications, Approvals & Typical Properties

ISO Viscosity Grade		68	100	150	220	320	460	680	1000
Meets the following Specifications
DIN 51517 Part 3, AISE(US Steel)224		X	X	X	X	X	X	X	X
ISO 12925-1 Type CKD, David Brown S1.53.101(E), AGMA 9005 E-02		X	X	X	X	X	X	X	X
Has the following Approval
Siemens Revision 15 for Flender gear units				X	X	X	X	X
Typical Properties
Test Parameters	ASTM Method	Typical Values
Viscosity @ 40 ºC, cSt	D 445	67.7	100.2	150.8	223.4	326.5	462.7	685.1	951.8
Viscosity Index	D 2270	152	155	158	148	153	159	168	160
Flash Point, ºC	D 92	276	242	246	249	252	252	255	266
Pour Point, ºC	D 97	-36	-42	-39	-42	-39	-39	-36	-24
Density @ 15ºC, Kg/l	D 1298	0.847	0.849	0.851	0.857	0.859	0.860	0.861	0.856
FZG, fail load stage	DIN 51354 Part II	-	>12	>12	>12	>12	>12	>12	>12
Rust Test	D 665A/B	Pass	Pass	Pass	Pass	Pass	Pass	Pass	Pass
Copper Corrosion	D 130	1a	1a	1a	1a	1a	1a	1a	1a
Emulsion Test 30 minutes max @ 82 ^oC	D 1401	Pass	Pass	Pass	Pass	Pass	Pass	Pass	Pass
